2023 GMK BP B12 line PR2~4 MDV replacement
페이지 정보
작성자 최고관리자 댓글 0건 조회 560회 작성일 21-10-13 13:15본문
MDV panel and main motor replacement construction for PR2~4 at GMK Bupyeong plant in August 2023.
Machine Specification
Description |
PR1 |
PR2 |
PR3 | PR4 |
||||
Tonnage |
2000 ton |
1000 ton |
800 ton | 500 ton |
||||
Slide stroke |
1000 mm |
800 mm |
800 mm | 800 mm |
||||
Slide adjustment |
250 mm |
600 mm |
600 mm | 600 mm |
||||
Die height | 1320 mm | 1500 mm | 1500 mm | 1500 mm | ||||
No. of slide stroke |
Contrinuous |
8~18 SPM |
10~20 |
10~20 | 10~20 |
|||
Intermittent |
14 SPM |
Max. 14 |
Max. 14 | Max. 14 |
||||
Slide area (LR x FR) | 3800 x 2400 mm | 3700 x 2250 mm | 3700 x 2250 mm | 3700 x 2250 mm | ||||
Bolster area (LR x FR) | 3800 x 2400 mm |
|
|
| ||||
Micro-inching |
|
|
|
| ||||
Balance cylinder capacity | 20 ton |
|
|
| ||||
Die cushion | Type | Pneumatic, 1 Pad 2 Cylinder |
|
|
| |||
| Capacity | 350 ton |
|
|
| ||||
Stroke | 0~300 mm |
|
|
| ||||
Pad area (LR x FR) | 3400 x 1900 mm |
|
|
| ||||
M/B | Type | Left T-Cross Exit motion |
|
|
| |||
Travel. speed | Max. 15 m/min |
|
|
| ||||
Carriage CAP. | 40 ton |
|
|
| ||||
Utilty | Air pressure | 5 Bar |
|
|
| |||
Main power | AC440V x 3Ph x 60 Hz |
|
|
| ||||
Control power | AC110V, DC24V |
|
|
| ||||
Construction

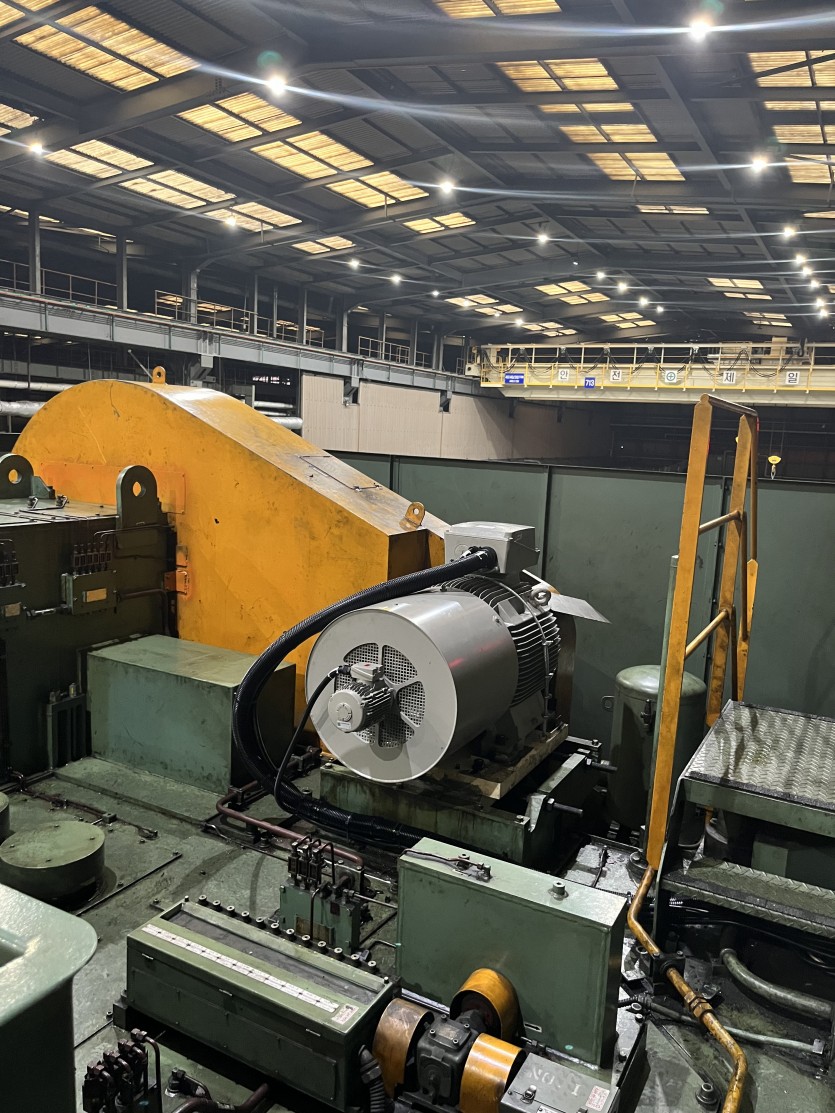

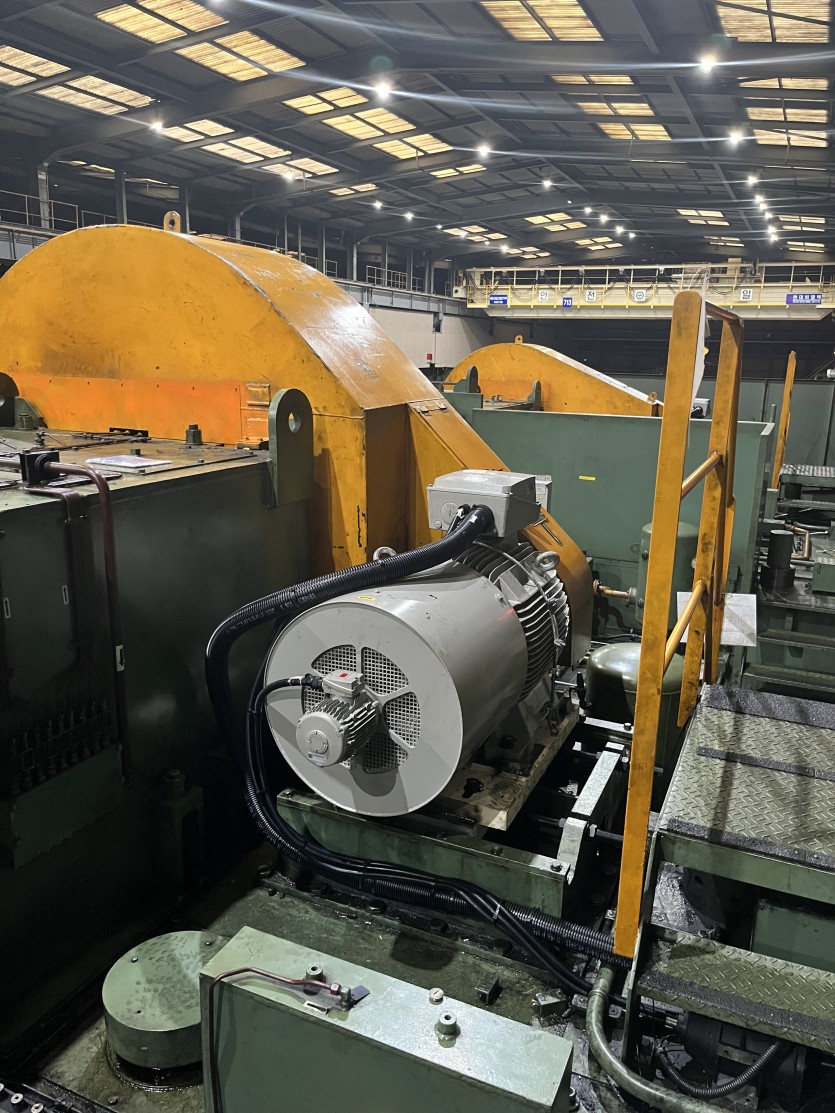

- Replacement to siemens main motor

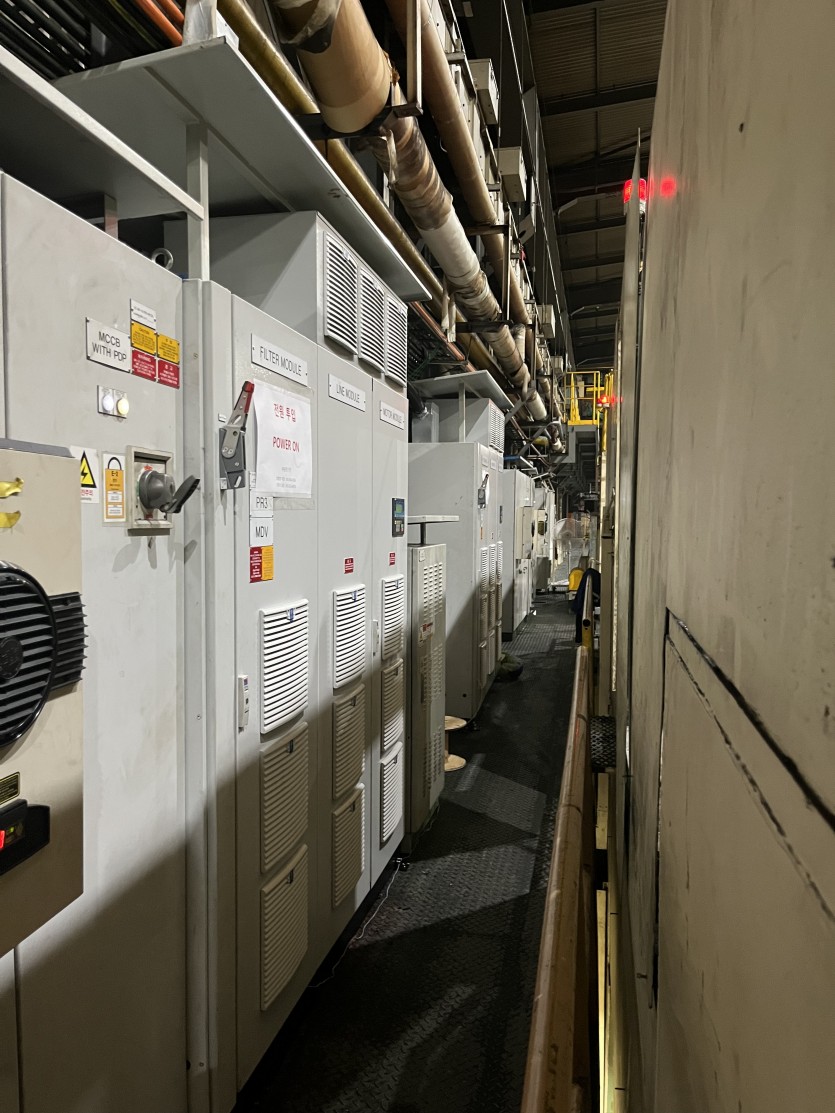

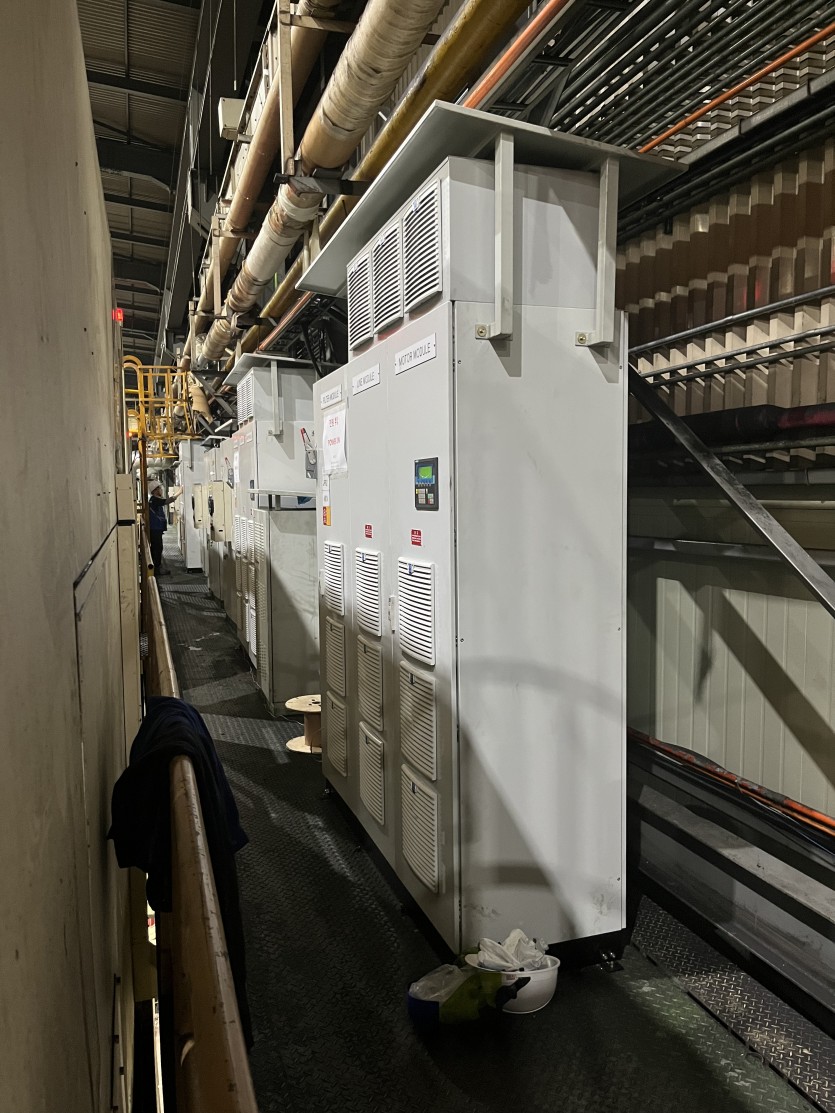

- Siemens drive panel installation

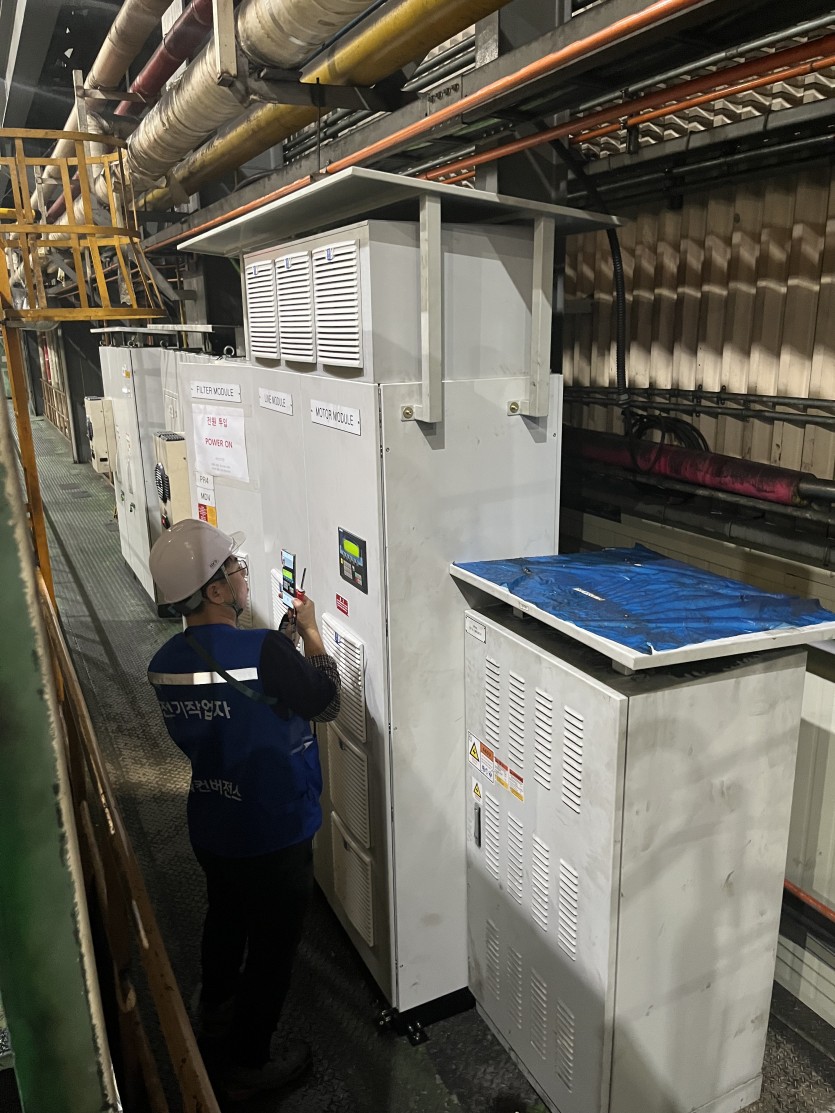

Commissioning
- Rockwell ControlGuardLogix PLC
Communication
- Ethernet
