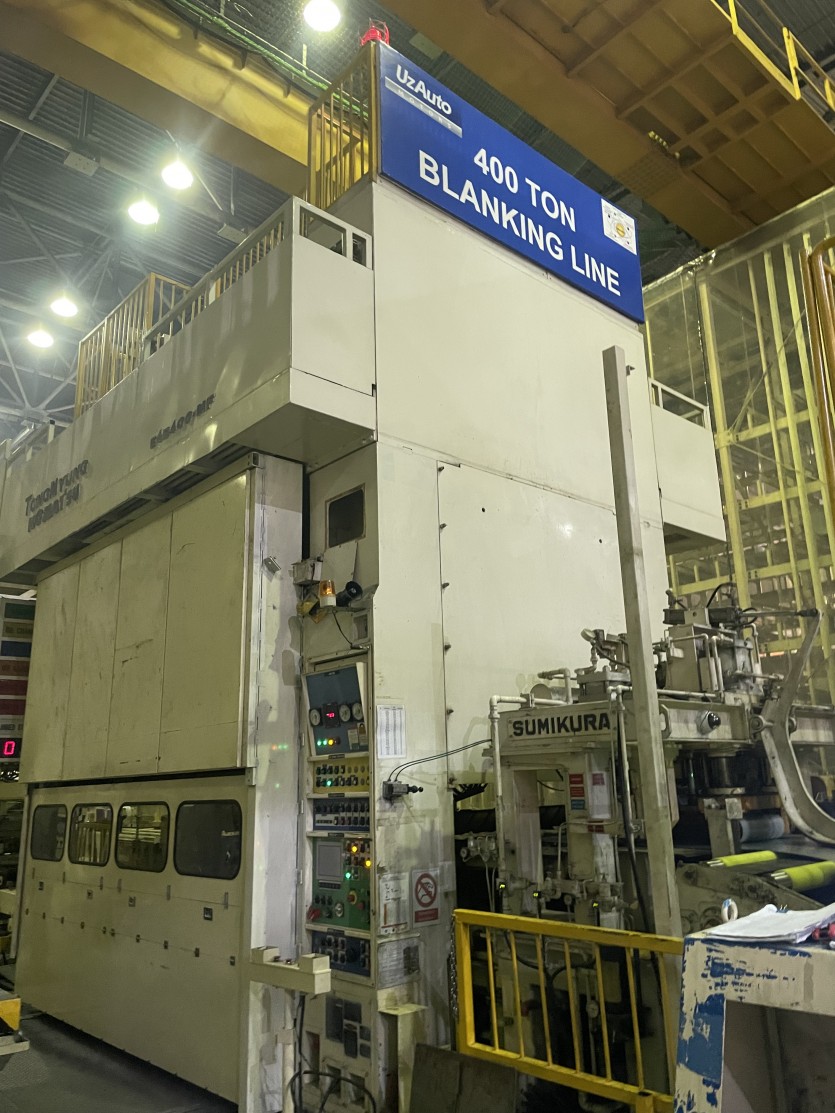

2023 UzAuto 400ton branking press
페이지 정보
작성자 최고관리자 댓글 0건 조회 537회 작성일 21-10-12 17:13본문
January 2023 Uzbekistan branking press device electrical modification work
Machine specification
|
PR1 |
||
Maximum Capacity |
400 metric ton |
||
Limit Of Capacity (Above B.D.C.) |
6 mm |
||
Slide Stroke |
250 mm |
||
Slide Adjustment |
100 mm |
||
Stroke Per Minute |
Continous Operation |
8 & 15~60 spm |
|
Intermittent Operation | Max 16 spm | ||
Die Height (Bolster To Slide, Stroke Down Adjustment Up) | 900 mm | ||
Slide Dimension (U-LO x R-L) | 3700 x 2150 mm | ||
Bolster Dimension (U-LO x R-L x Thickness) | 3700 x 2150 x 230 mm | ||
Balancer Capacity (Adapter weight + Upper die weight) | 10 metric ton | ||
Moving bolster loading weight | 25 metric ton | ||
Height from floor to top face of bolster | 810 mm | ||
Height from floor to top face of bed | 10 mm | ||
Height from floor to passline | 1410 mm | ||
Working energy (at 15~60spm) | 3.5 t - m | ||
Main motor capacity | AC 55kW | ||
Construction

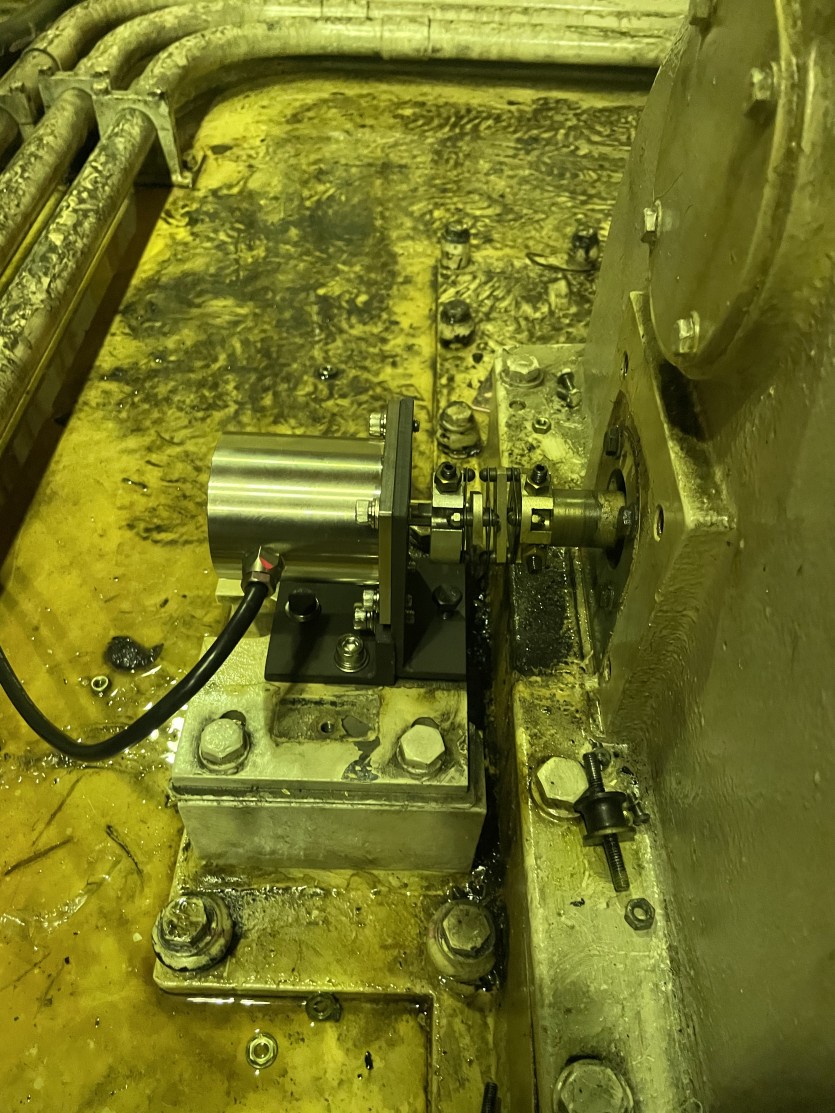

- Replace to NSD Varicam & Encoder

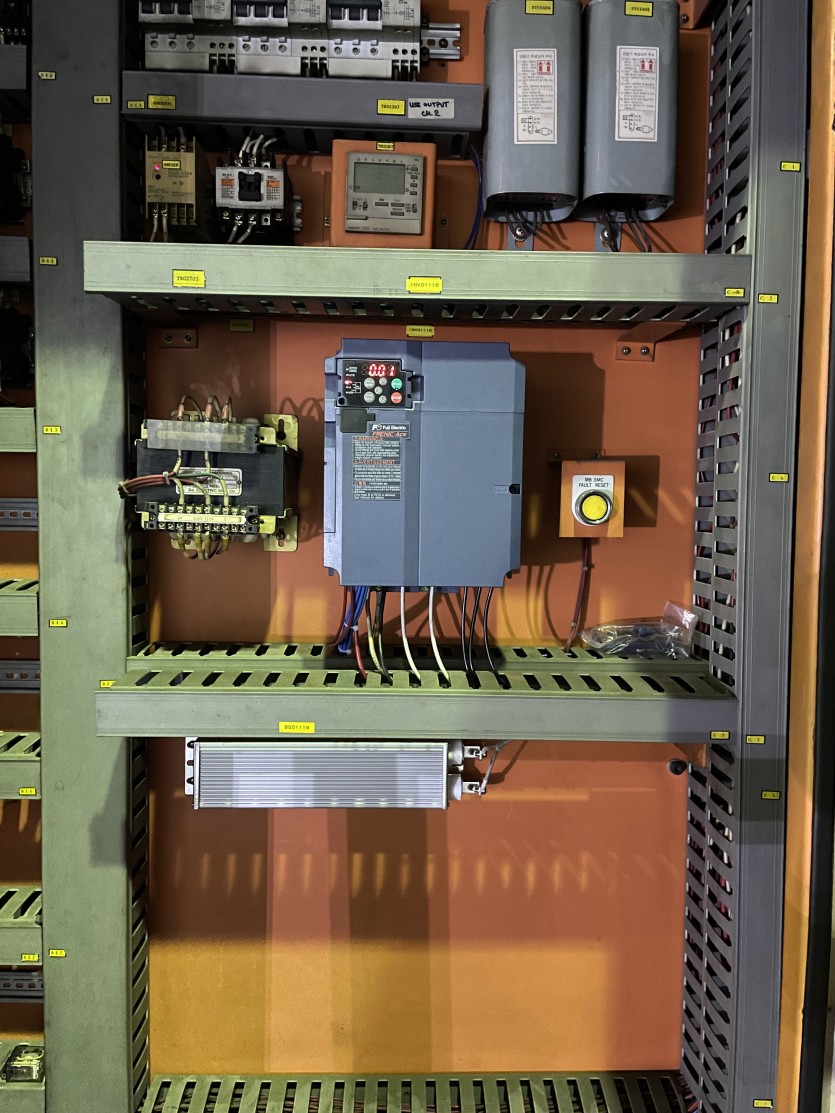

- Replace to Fuji inverter

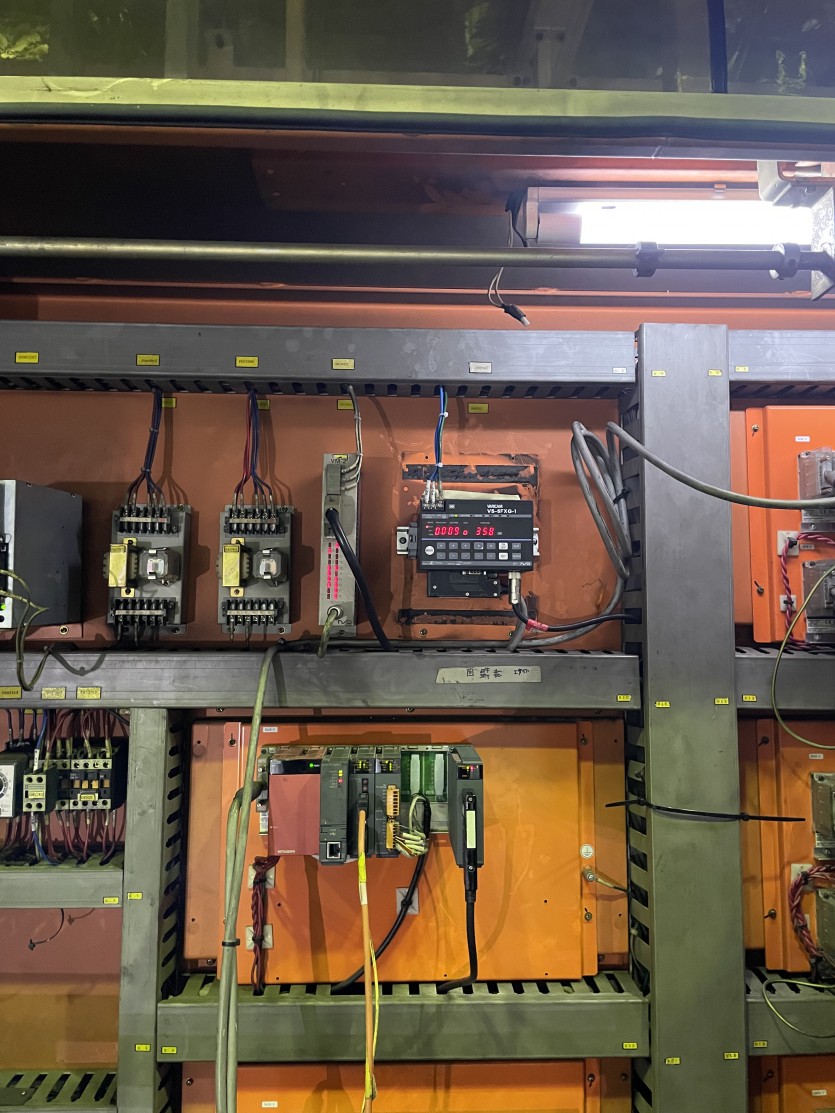

- Replace to Mitsubishi RTD PLC
Commissioning
- Mitsubishi Q Series PLC
- Fuji inverter set
- NSD Varicam advanced angle set
- Pro-Face HMI
Communication
- MelsecNet H
- Ethernet
